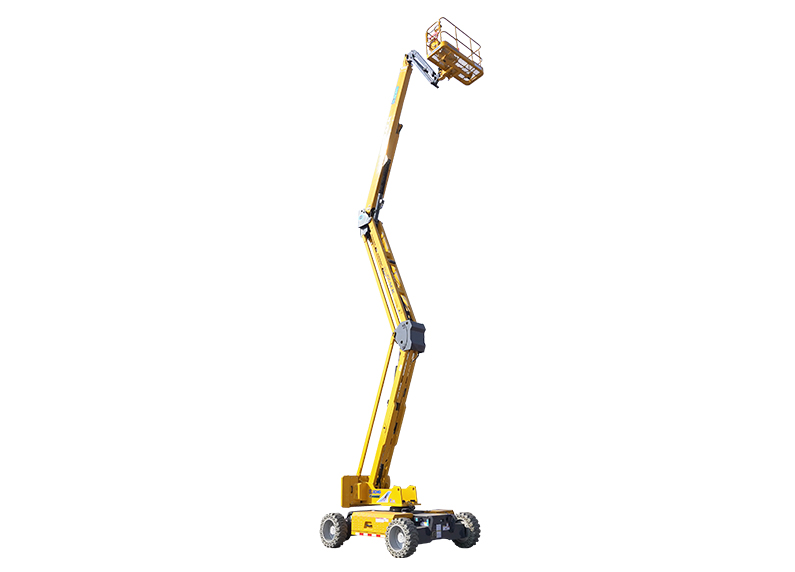

XGA22ACK
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Working Height | mm | 22210 |
| Lift capacity | kg | 256(unlimited)/350(limited) |
| Weight | kg | 10100 |
| Overall dimension-Stowed | mm | 8490x2490x2400 |
| Overall dimension-Transportation | mm | 8000x2490x2100 |
| Dimension of working platform | mm | 1830x760x1150 |
| Wheelbase | mm | 2500 |
| Fly jib length | mm | 1850 |
| Ground clearance | mm | 300 |
| Max.Platform height | m | 20.21 |
| Max.Working range | m | 12.23 |
| Max.up and over clearance | m | 9.5 |
| Max.Occupants | – | 2/3 |
| Max.Working slope | ° | X-5°/ Y-5° |
| 1st Boom luffing range | ° | 0°~ +70° |
| 2nd Boom luffing range | ° | 0°~ +71° |
| Flying jib luffing range | ° | -65°~ +70° |
| Turntable rotation | ° | 360° |
| Platform rotation | ° | 160° |
| Drive speed | stowed | 4.5 |
| Drive speed | Up or extended | 0.6 |
| Min.Turning radius | inside/outside | 5000 |
| Turntable tailswing | stowed | 560 |
| Max.Gradeability | % | 40% |
