XUT320

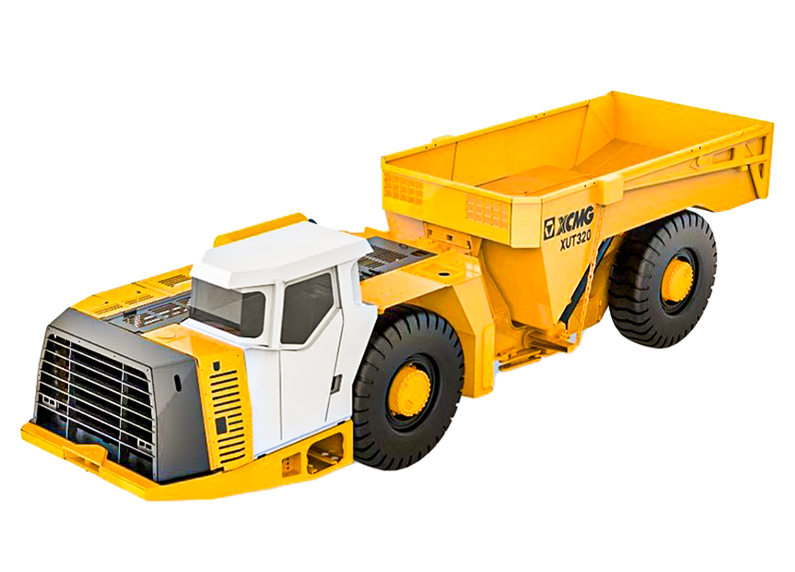

XUT320 underground truck is designed for the transportation of ore and waste rocks in underground metal mines. It adopts engine drive, hydraulic mechanical transmission, and articulated steering. It has the characteristics of high transportation efficiency, convenient and flexible use, and high intelligence. This product is mainly suitable for metal mines with a roadway section of no less than 3m × 3m, as well as railway, highway, water conservancy and other tunnel projects. It is especially suitable for harsh working conditions, narrow and low working sites and muddy working faces.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Rated bucket capacity | m³ | 10 |
| Rated loading capacity | t | 22 |
| Maximum traveling speed | km/h | 26 |
| Minimum turning radius | inner side/outer side | 3962/7355 |
| Transport dimensions | L×W×H | 9121×2402×2490 |
| Total weight | t | 22±0.5 |
| Loading height | mm | 2260 |
| Approach angle | ° | 14 |
| Engine | – | TAD853VE / TAD883VE |
| Emission standard | – | EU III / EU V |
| Rated power | kW | 235 |
