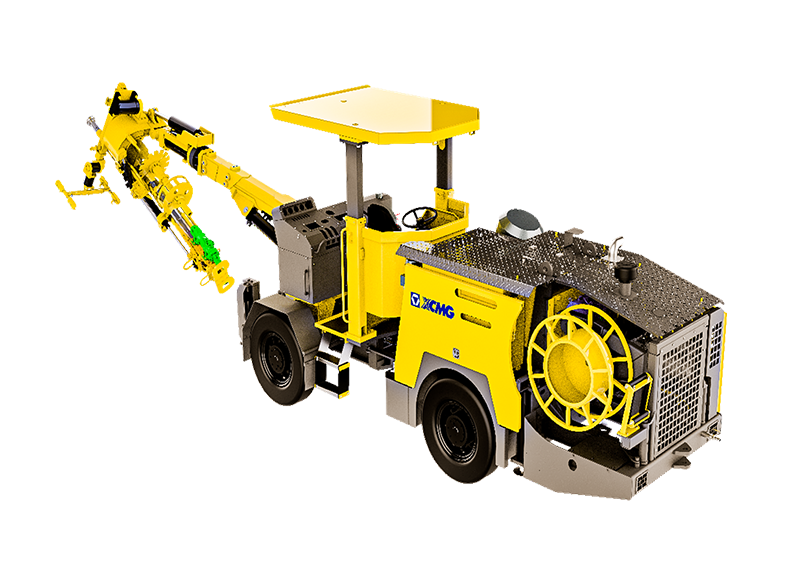

XUB125
XUB125 is mainly suitable for the bolting operations in metal mines (such as underground gold mines, iron ores, and copper mines), non-metal mines (such as gypsum mines and phosphorite), hydropower projects, small tunnels, inclined shafts, culverts, etc; The equipment adopts a hydrostatic transmission system, with a compact structure and flexible maneuverability; The whole machine can be divided into several modules, which is convenient for access to the mine through cages; The construction of the resin anchor bolt and the slit wedge tubing bolt can be completed mechanically in the whole process, and a mesh hanging gripper is optional.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drifter brand & model | – | Montabert HC25 |
| Impact power | kW | 8 |
| Anchor bolt length | mm | 1500 / 1800(Standard) / 2000 |
| Installed power | kW | 60 |
| Power of engine | kW | 55.8 |
| Emission standard | – | CN IV |
| Cable length | m | 80 |
| Total weight | t | 11.5 |
| Dimension | mm | 9550×1600×2000 |
