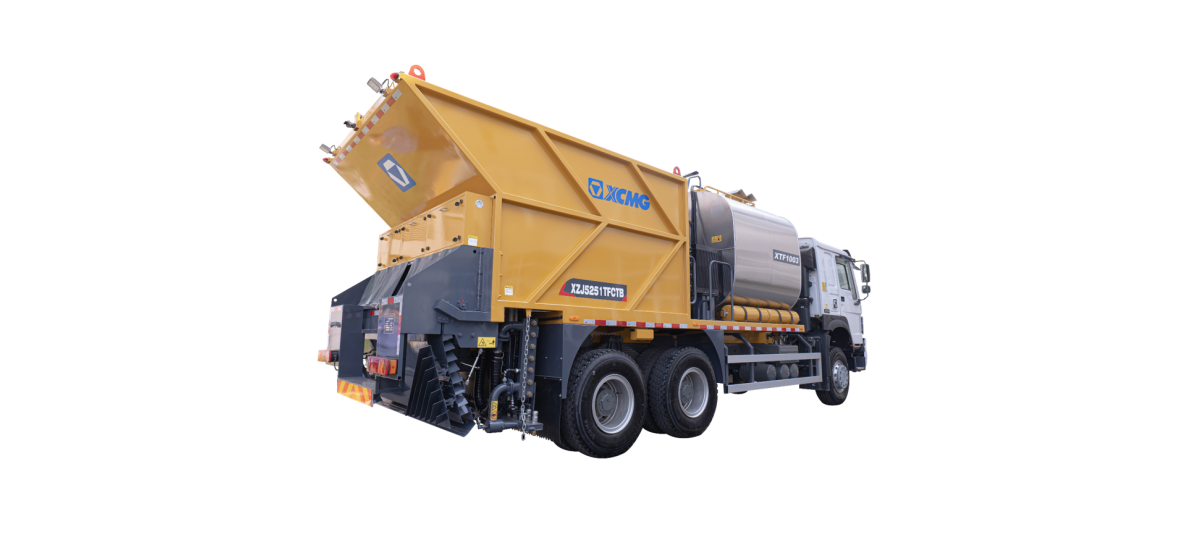

XTF1003
XTF1003 Asphalt synchronous chips sealing vehicle can realize the synchronous spreading of asphalt and gravel, improve the quality of pavement seal coat; It can be used to spread rubber asphalt, matrix asphalt, modified asphalt and emulsified asphalt; It is applicable to the construction of lower and upper seal coat, wearing course construction for new and old road surface, layer spread method of asphalt pavement, the separate spreading of asphalt and gravel in special case, etc; It can not only be used for the interlayer treatment and medium maintenance construction of high-grade highway, but also can be used for the construction of rural roads with less traffic.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Maximum seal width | m | 4 |
| Asphalt spraying amount | kg/m2 | 0.2～3.0 |
| Distribution volume of gravel | L/m2 | 3～22 |
| Volume of asphalt tank | m³ | 6 |
| Volume of gravel silo | m³ | 10 |
| Gravel diameter | mm | 3～25 |
| Chassis mode | – | Sinotruck |
| Engine type | – | WP10.340E22 (China Ⅱ) |
| Engine power | kW/（r/min） | 250/2200 |
| Driving mode | – | 6×4 |
| Curb weight | kg | 19000 |
| Overall dimension | mm | 9830×2500×3840 |

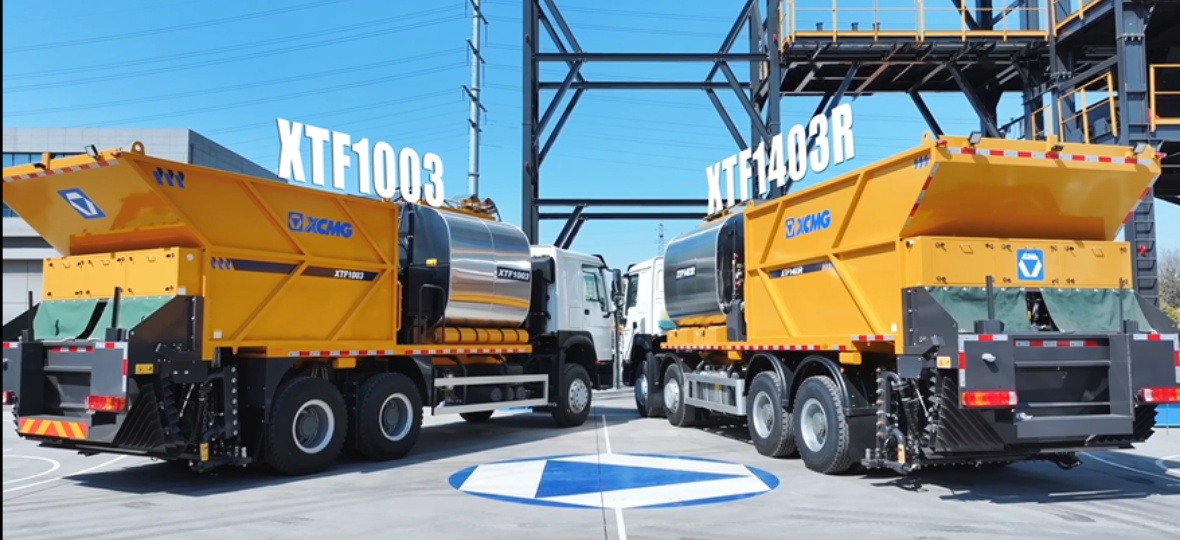

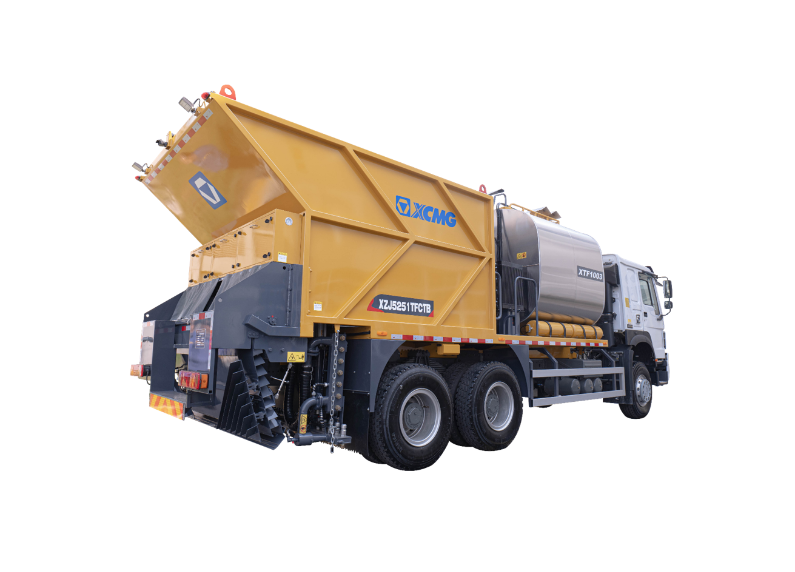

Gallery
