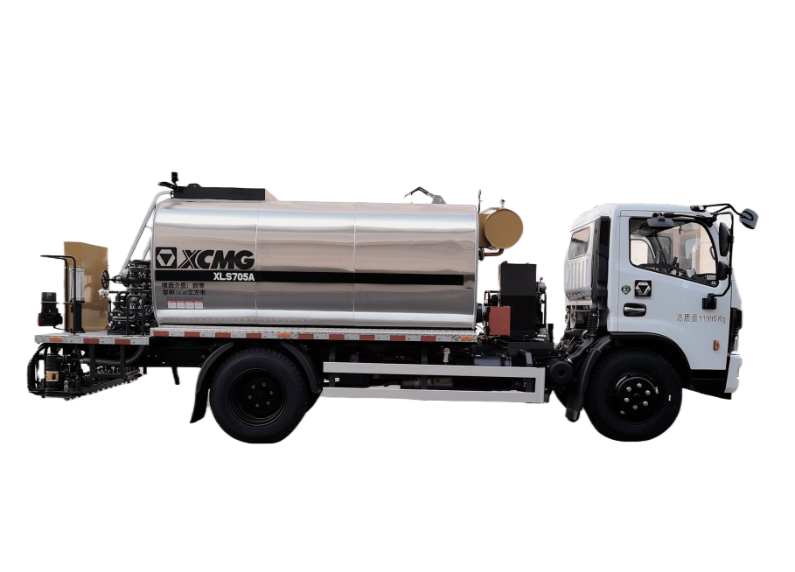

XLS705A
XLS705A Intelligent asphalt distributor is an automation product specialized in distributing emulsified asphalt, diluted asphalt, hot asphalt and modified asphalt. The product controls the whole process of asphalt spraying through the controller, thus the asphalt distribution amount is not affected by the change of speed, and the high-precision spraying is achieved. It is mainly used for construction and maintenance projects of highway, all grades of roads and municipal roads, suitable distributing construction of prime coat, bonding layer, upper and lower sealing layers of different grades of road surface.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Curb weight | kg | 7250 |
| Overall dimension | mm | 7560×2360×2870 |
| Volume of asphalt tank | m³ | 7 |
| Max. spraying width | m | 4.5 |
| Asphalt spraying amount | ㎏/㎡ | 0.2-3.0 |
| Chassis model | / | Sinotruk ZZ1107G4515C1 |
| Engine type | / | YC4E160-33 |
| Engine power | kW/（r/min） | 118/2600 |
| Driving mode | / | 4×2 |
