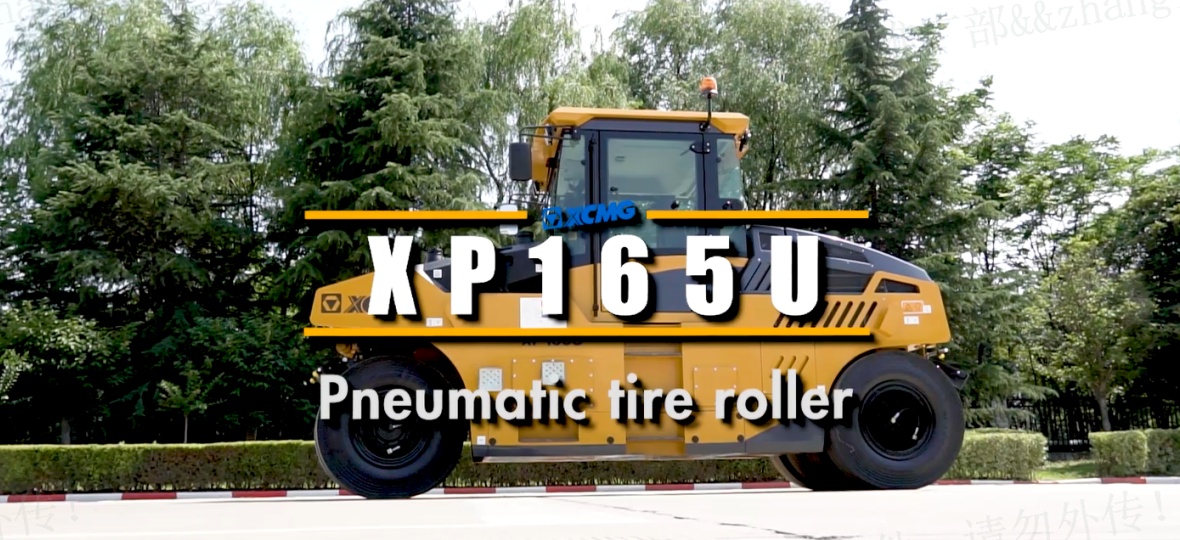

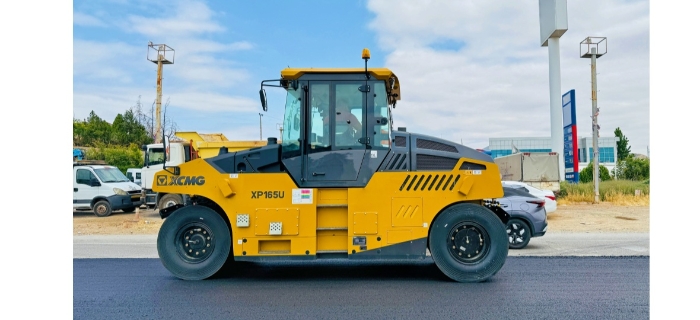

XP165U

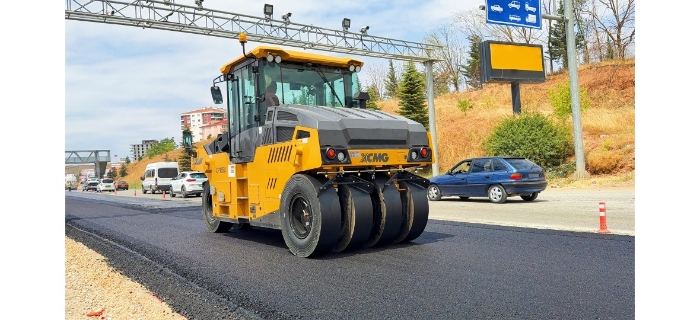

XP165U pneumatic tire roller is a medium-tonnage pneumatic tire roller produced according to European market requirements, which will take pneumatic tires as workingdevice for compacting paved materials. The pneumatictire roller is mainly applicable for compacting operation ofasphalt pavement, foundation layer, secondary foundation layer, dam and filling engineering. It is an ideal set ofcompacting equipment for building high grade highway,airport, port, dam and industrial construction site.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | Cummins |
| Emission | – | EU Stage V / T4F |
| Operating Weight | kg | 16000 |
| Dimensions | mm | 5,100 x 2,175 x 3,000 |
| Working speed | km/h | 0～19 |
| Gradeability | % | 30 |
| Wheelbase | mm | 3900 |
| Drum width | mm | 2075 |
| Rated power | kW | 90 |
Gallery
