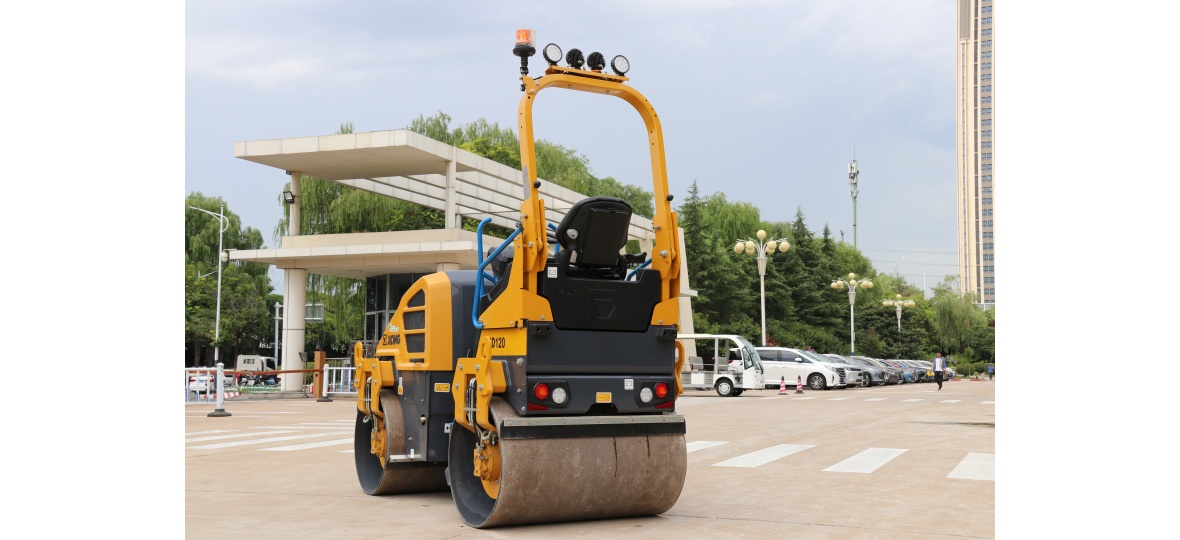

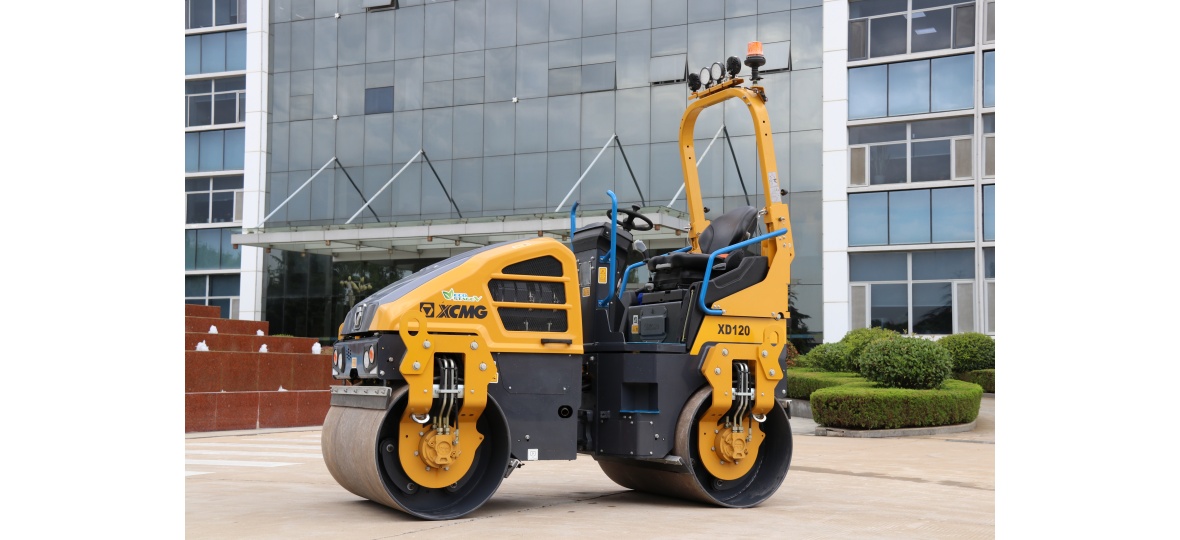

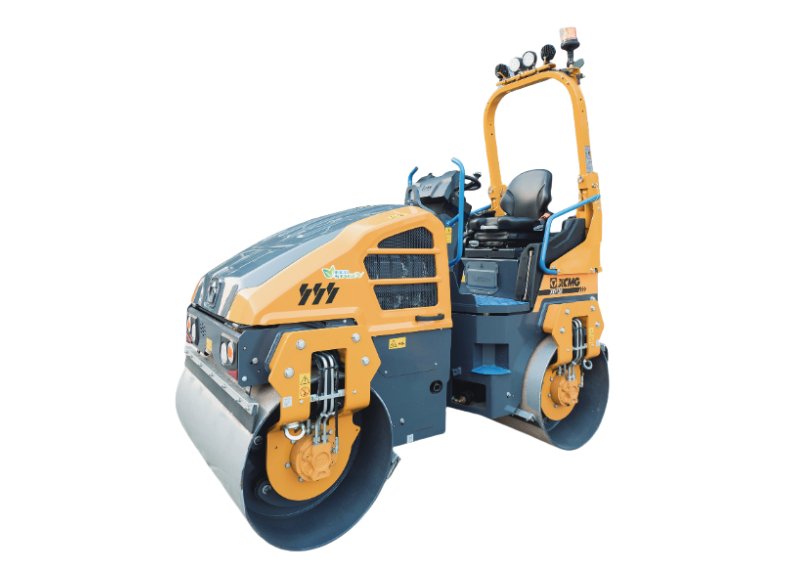

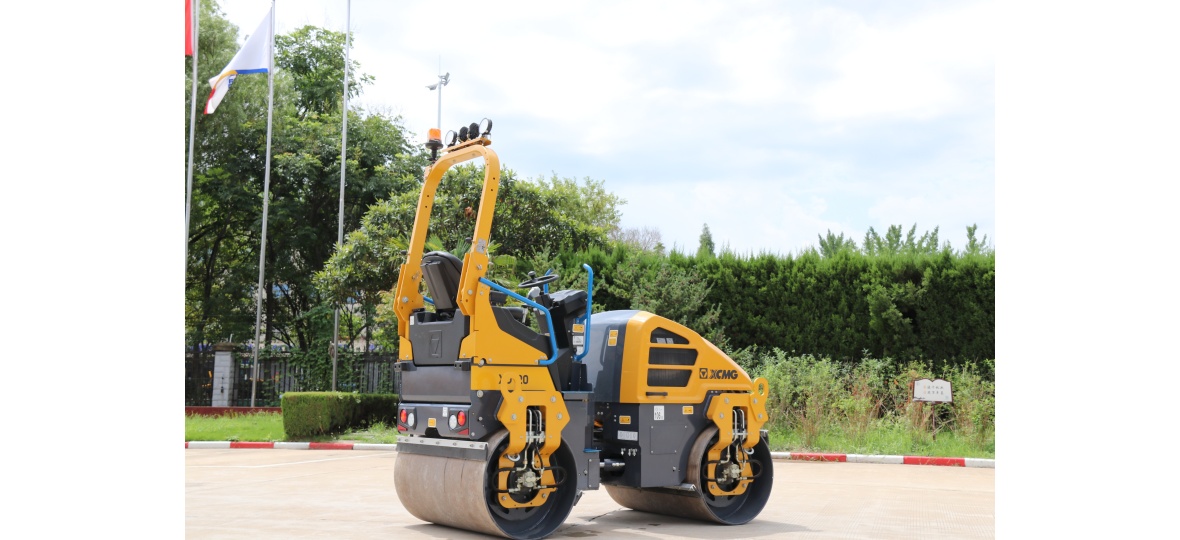

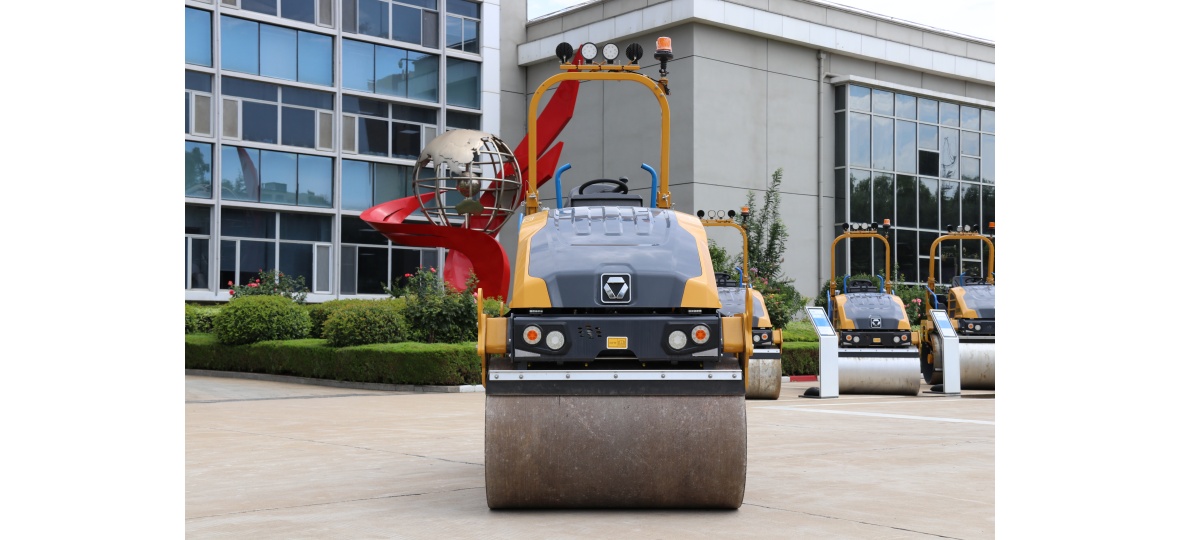

XD120(Stage Ⅴ)
The XD120 vibratory roller is ideal for compacting newly constructed asphalt surfaces and maintaining roads. It can also be utilized for thin stabilized soil pavement layers. This equipment is particularly suitable for municipal maintenance and efficiently performs high-speed compaction of asphalt surfaces.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine | – | KUBOTA |
| Rated Power | kW | 17.1/24.6 |
| Emission | – | EU Stage V |
| Vibration frequency | Hz | 67；63/67 |
| Operating Weight | kg | 2690/2850 |
| Working Width | mm | 1200 |
| Dimensions | mm | 2,610 x 1,286 x 2,795 |
| Foldable ROPS Dimensions | mm | 2,910 x 1,286 x 1,845 |
Gallery
