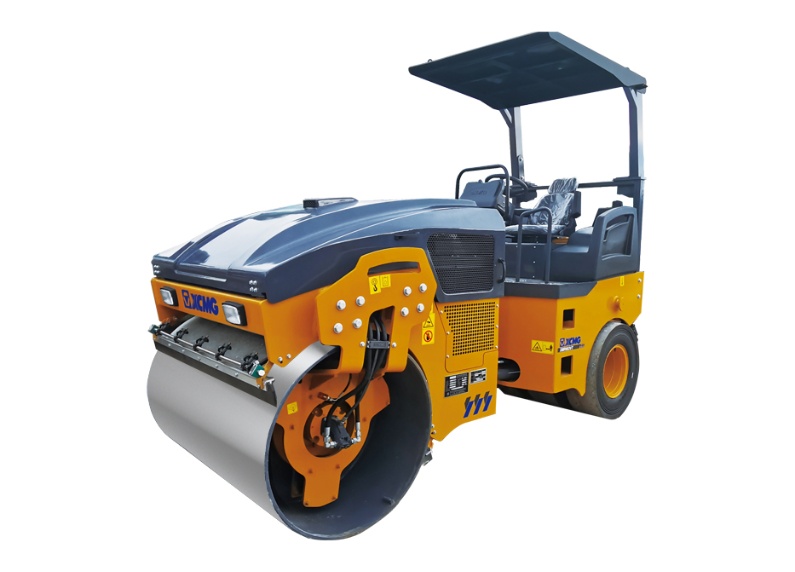

XMR603
XMR603 vibratory roller is specially designed formunicipal roads and medium engineering custom-ers.The compact machine structure and high flexi-bility makes it the ideal machinery for municipalmaintenance,asphalt wearing course constructionand building works of highway management andmaintenance;Its features include all-wheel drive,two speeds, double amplitude, double frequency,interval sprinkling and automatic vibration.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | kg | 6000 |
| Static linear load | N/cm | 174/213 |
| Vibration frequency | Hz | 55/48 |
| Excitation force | kN | 70/45 |
| Drum width | mm | 1520 |
| Theoretical gradeability | % | 37 |
| Model | – | 4B5-80C31 |
| Rated power | kW | 59 |
| Rated speed | r/min | 2400 |
| Emission | – | EU Stage Ⅲ |
