XGL1200

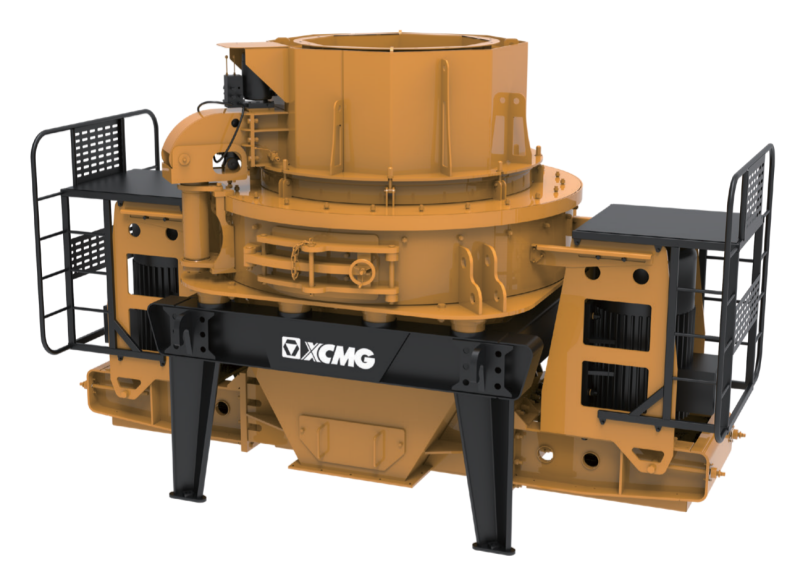

XGL1200 Vertical-shaft impact crusher is made for fine crushing of various stones, features big ratio of crushing, high efficiency, good grain types and high rate of sand formation, and is widely applied to high-speed railway, expressways, nuclear power station and bridge construction projects for producing fine aggregates.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Max. feedstock size / crushing | mm | 50 |
| Max. feedstock size / shaping | mm | 60 |
| Through-put / crushing | t/h | 450~490 |
| Through-put / shaping | t/h | 500~580 |
| Motor power | kW | 630 |
| Spindle speed | rpm | 900~1200 |
| Working environment temperature | ℃ | -20~+40 |
| Whole machine weight | t | 21 |
| Overall dimensions /L×W×H | mm | 5700×2980×4190 |
