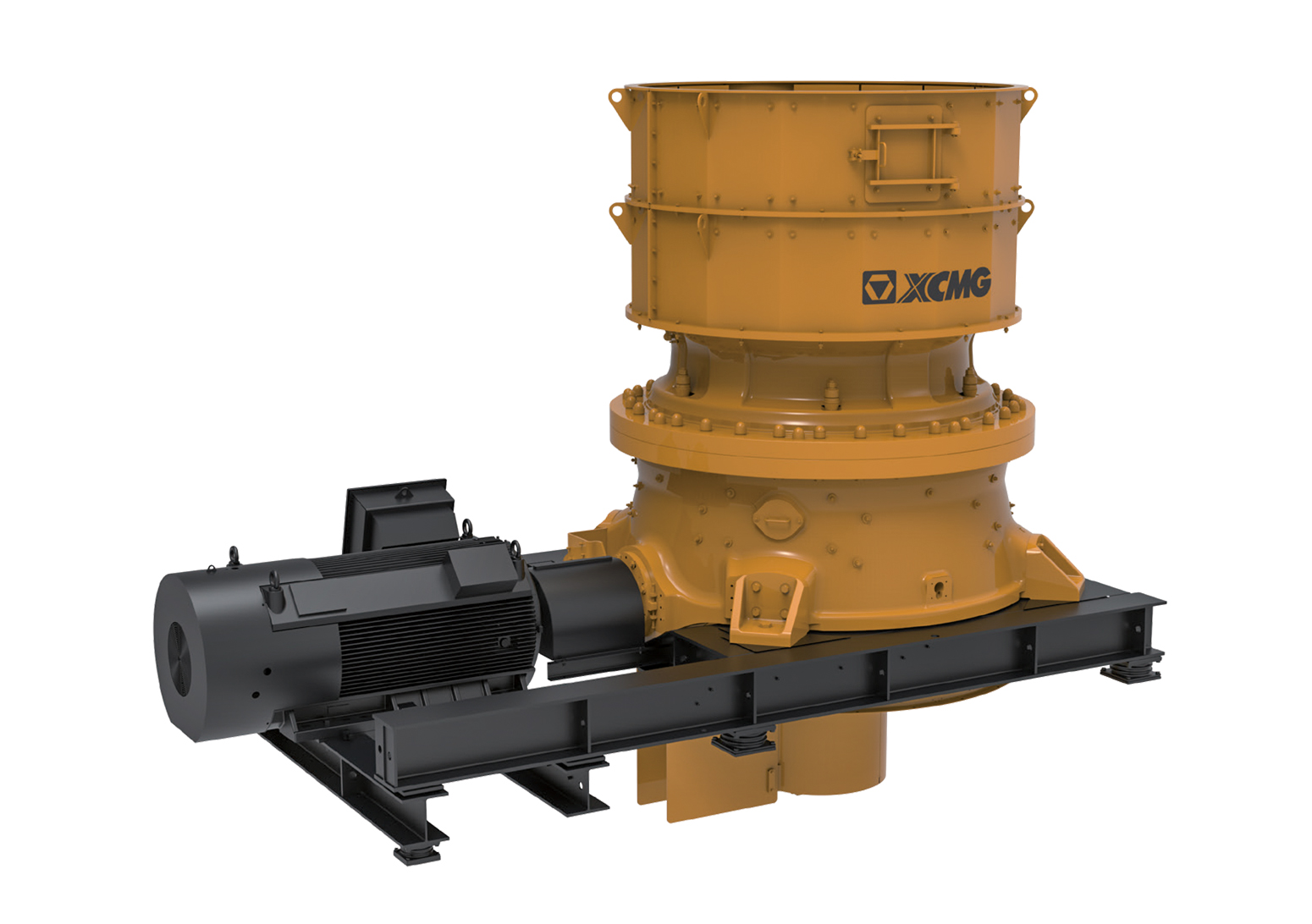

XGY1300D
XGY1300D is a large-sized single cylinder cone crusher, which is independently developed by XCMG based on years of experience in research and development of machinery. This cone crusher is more stable, more efficient and more intelligent, and as the second-step and third-step crushing equipment in material machining, it is widely applied in mining, water engineering, metallurgy and building material industries.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Max. feedstock size | mm | 321 |
| Range of discharge opening | mm | 8～51 |
| Productivity | t/h | 110～662 |
| Driving type | – | Belt drive |
| Motor power | kW | 315 |
| Horizontal shaft speed | rpm | 1490±5 |
| Overall weight | kg | 31420±500 |
| Overall dimensions | mm | 3170×2750×3153 |
