XPE1215

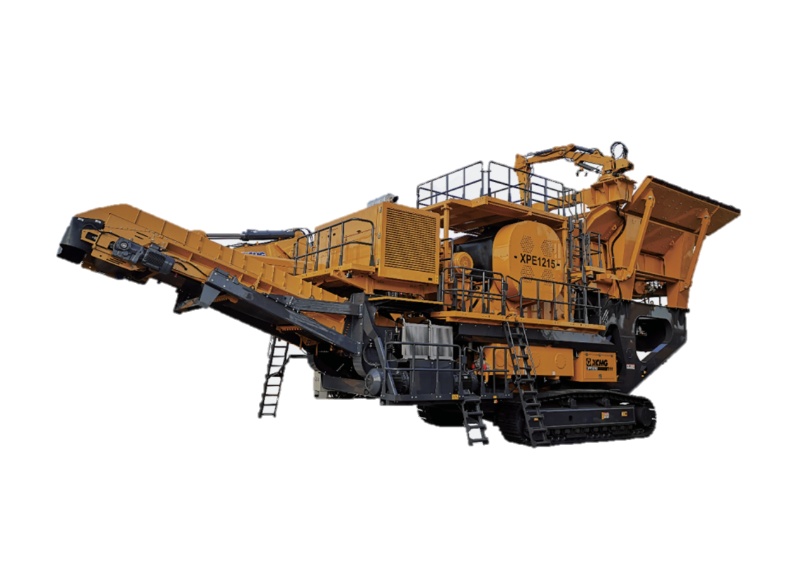

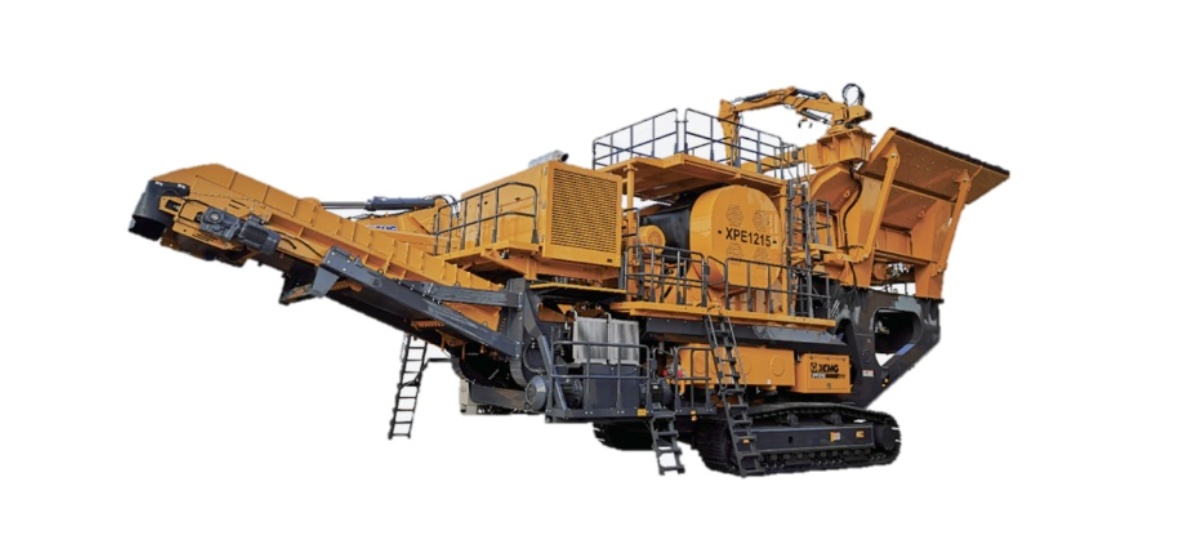

XPE1215 movable jaw crushing station is a kind of large-scale equipment specially developed to meet open-pit coarse crushing requirements. If it is coupled with a mobile belt conveyor, it can be composed into a “truckless material conveying system”. It has reliable performances and a pleasant appearance, and is equipped with a deep cavity type jaw crusher, graphic touchscreen interface and optimized engine power matching technology, and has reached advanced global standard. It is widely applied for coarse crushing of various ores and natural stones.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Overall weight | kg | 150700 |
| Handling capacity | t/h | 400～1000 |
| Working dimensions /L x W x H | mm | 19918×6421×9506 |
| Transportation dimensions /L x W x H | mm | / |
| Min. ground clearance | mm | / |
| Travel speed | km/h | 1 |
| Gradeability | ° | ≤12 |
