XPF1214D

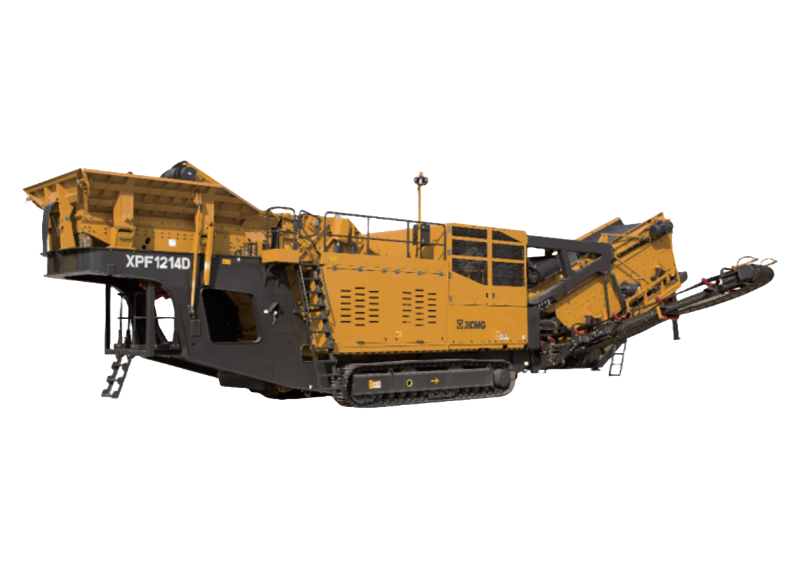

XPF1214D movable impact crushing station is specially developed for breaking rocks with low/middle hardness (limestone, bluestone) and construction waste. XPF1214 has the following functions: discharge port accurate regulation – stable grain diameter and shape; oil-electric hybrid – applying to multiple working conditions; feeding adaptive adjustment system – reduces the material blockage risk and ensures continuous & reliable machine operation; overload protection and iron-passing protection; intelligent fault detection and real-time monitoring – accurate and fast troubleshooting; 562KW high-power engine – powerful and efficient. The complete machine can bring you outstanding breaking experience by virtue of professional design, lean manufacturing, ultrahigh reliability, and intelligent control system.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Max. theoretical handling capacity | t/h | 80-450 |
| Hardness of crushed materials | M Pa | ≤150 |
| Curb weight / including screening system | kg | 74300(Including oil fluids) |
| Curb weight / not including screening system | kg | 61300(Including oil fluids) |
| Screening machine / number of layers | – | 3 |
