XPY1300D

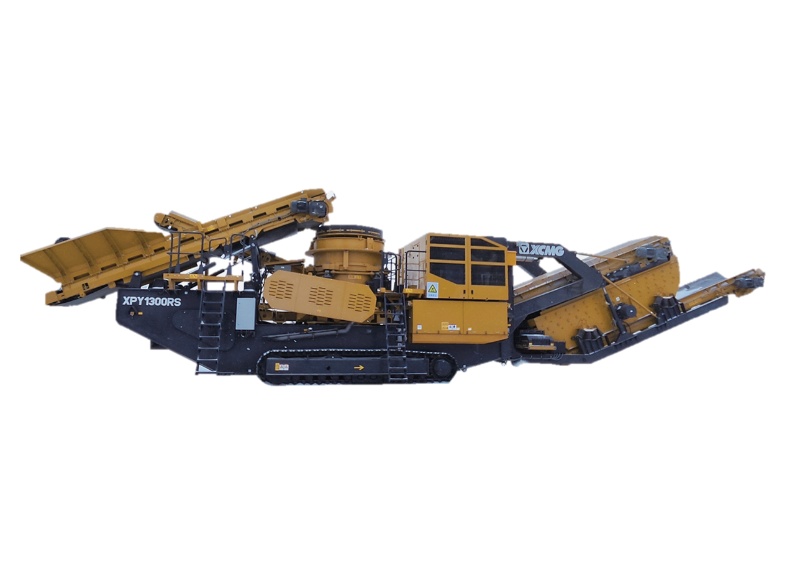

XPY1300D movable cone crushing station has reliable performances and a pleasant appearance, and is equipped with a multi-cylinder hydraulic cone crusher, a hydraulic lubrication system, an advanced electric control system and self-adaptive engine power matching technology, and the overall machine design has reached world advanced level. It is widely used for coarse crushing of highly abrasive natural stones and for intermediate and fine crushing, and the application can be extended to mining field.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Curb weight / Including material return conveyor | kg | 72760 |
| Curb weight / Not including material return conveyor | kg | 62019 |
| Handling capacity | t/h | 140-635 |
| Max. grade ability | ° | 11 |
| Travel speed | km/h | 0.5/0.85 |
| Fuel tank capacity | L | 1050 |
| Hydraulic oil tank capacity | L | 260 |
| Lubrication oil tank capacity | L | 400 |
