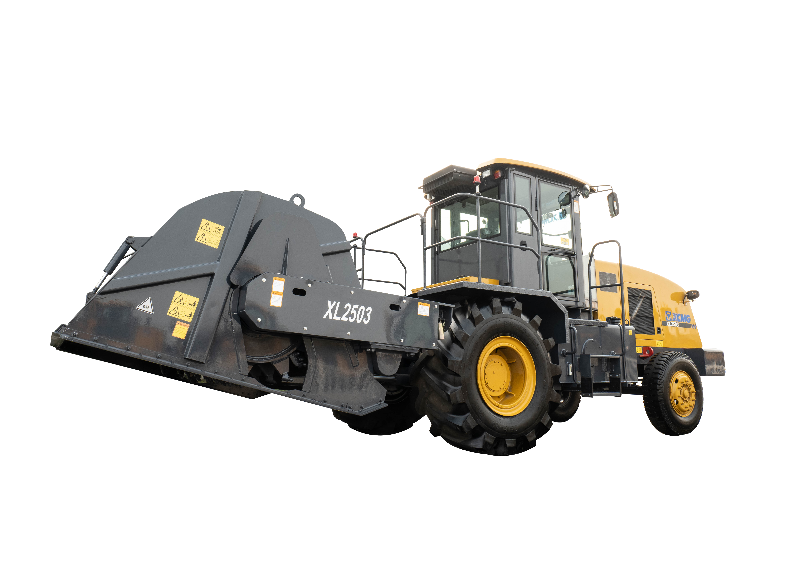

XL2503
XL2503 stabilized soil mixer is suitable for in-placemixing of stabilized soil on the base course and subgrade course of high ways, urban roads squares, wharfs, parking lots and other projects. lt can mix lime-ash soil, lime-ash stabilized aggregate and water-stabilized gravel at various proportions on the spot.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Engine Model | – | WP12G430E300 |
| Rated Power | kW | 316 |
| Engine Speed | rpm | 1900 |
| Working Width | mm | 2500 |
| Maximum Milling Depth | mm | 0-400 |
| Tool Spacing | mm | / |
| Number of Picks | pcs | 184 |
| Diameter Mixing Rotor/with picks | mm | 1280 |
| Machine Weight | kg | 16500 |
| Mechanical | L×W×H/mm | 8740x3060x3450 |
| Emission | / | China Stage Ⅲ |
