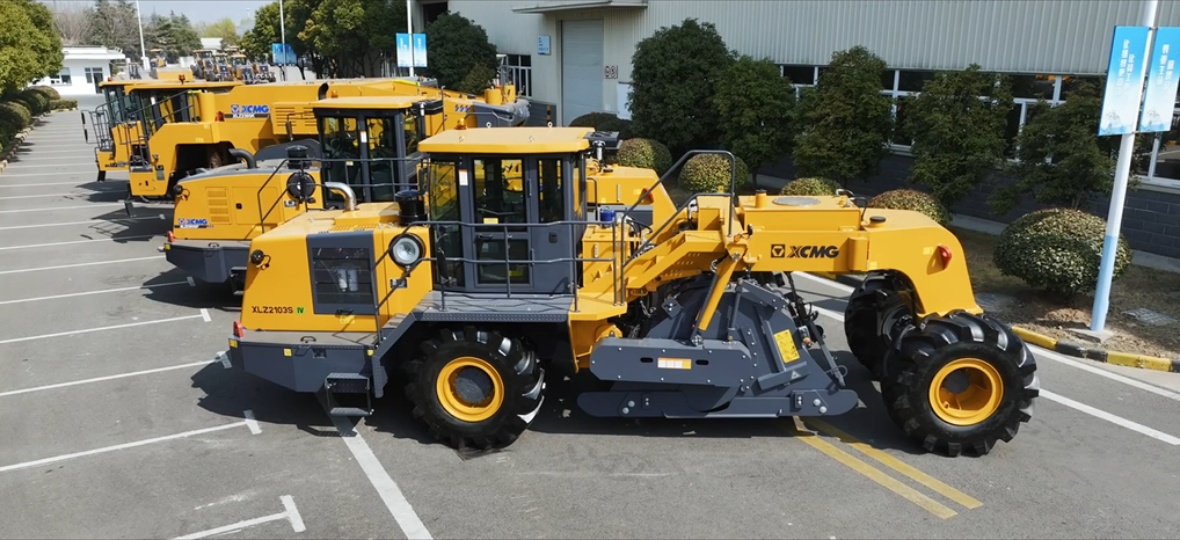

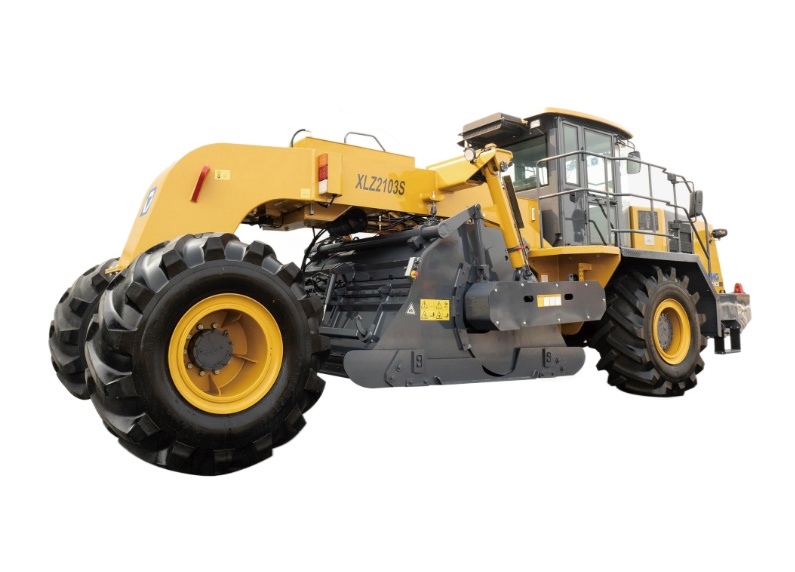

XLZ2103S
XLZ2103S cold recycler is a kind of multi-functional pavement maintenance equipment, which is mainly used forthe in-place mixing of stabilized soil of base course and subgrade course in the highways, urban roads, squares, wharfs and parking lots etc. It is suitable for mixing the filler, cement and lime etc. with the natural soil to improve the mechanical and physical properties of the soil; for cold-recycling the base course in the upgrading and modification engineering of the existing asphalt pavement ofrural roads; and for milling the damaged asphalt pavementwhich is less than 150mm thick.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Milling width | mm | 2100 |
| Miling depth | mm | 0-400 |
| Space between tools | mm | 18 |
| Quantity of tools | Piece | 144 |
| Diameter of milling wheel | mm | 1380 |
| Diesel engine Manufacturer | / | WEICHAI |
| Cooling mode | / | Water-cooling + air-air inter-cooling |
| Number of cylinders | / | 6 |
| Rated power | kW | 353 |
| Engine speed | rpm | 2100 |
| Fuel consumption: Full load | kg/h | 74 |
| Working speed | km/h | 0-3.2 |
| Traveling speed | km/h | 0-23 |
| Theoretical gradeability（working gear） | % | 20 |
| Ground clearance | mm | 350 |
| Diesel tank | L | 650 |
| Hydraulic oil tank | L | 300 |
| Water tank | L | 200 |
| Electric system | V | 24 |
| Machine（LxWxH） | mm | 9230×3160×3450 |
| Emission | / | China Stage Ⅲ |
