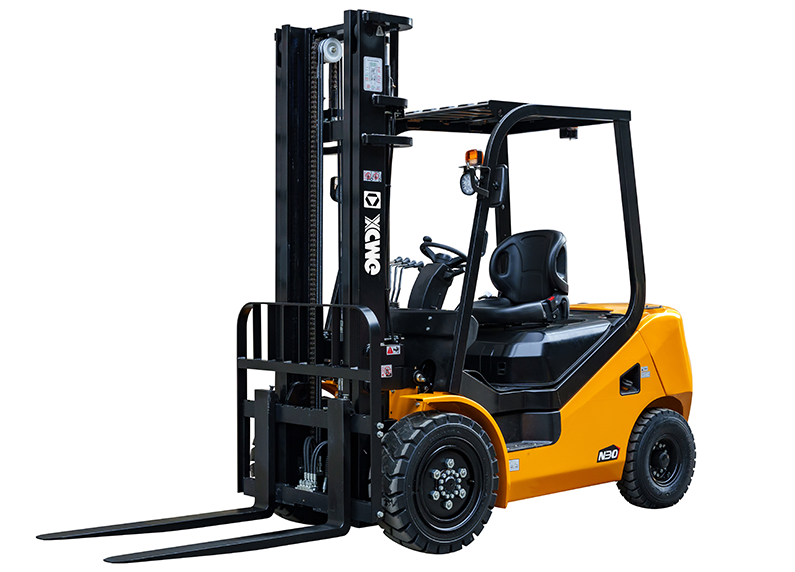

FD30T
FD30T Forklifts deliver powerful performance and high load capacity, making them ideal for heavy-duty outdoor applications such as construction materials, metal processing, ports, and industrial yards. IC Forklifts are available in diesel, gasoline, and LPG options, offering strong gradeability, excellent durability, and all-weather adaptability. With a robust structure and long service intervals, they are built for the most demanding lifting tasks.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Overall weight | kg | 4460 |
| Rated capacity | kg | 3000 |
| Maximum lifting height | mm | 3000 |
| Maximum travelling speed （unloaded\loaded） | km/h | 19/- |
| Maximum lifting speed （unloaded\loaded） | km/h | 430/- |
| Maximum gradeability（loaded） | – | 20 |
| Dimensions without fork | – | 2700 |
| Wheel base | mm | 1621 |
| Load center | mm | 500 |
| Minimum turning radius | – | 2425 |
| Type of mast Secondary standard type | – | / |
| Fork dimensions | mm | 1070*125*45 |
| Fork adjustment range | mm | / |
| Optional | – | / |
