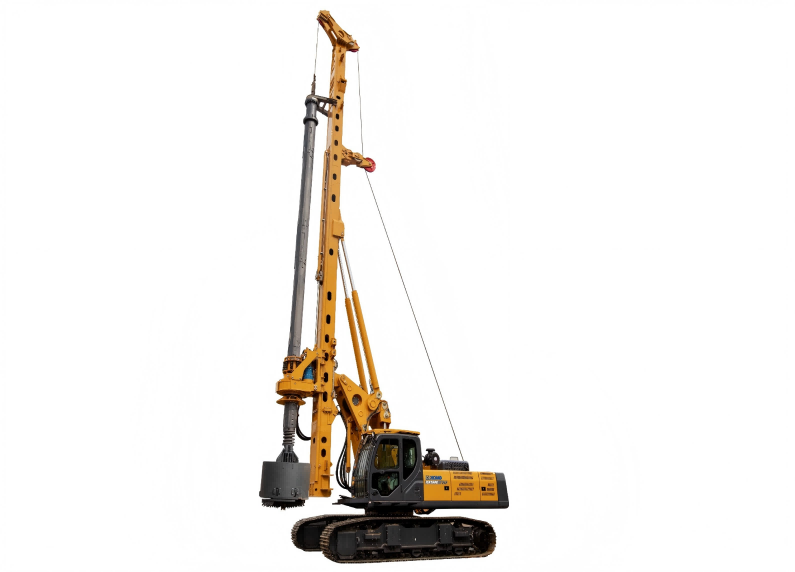

XR160E

As a multi-functional  machine,XR160E  can  realize  the  quick switching of functions such as crowd cylinder,crowd  winch,CFA and dual rotary drive to meet  more  different construction  needs; Cummins electronically controlled turbocharged engine ensures strong power,convenient and efficient service; With a maximum output torque of 160kN·m  and a maximum  speed of 35  r/min,the rotary drive can work more  efficiently; The main and auxiliary  winches  both  adopt single-row  rope  technology, The service life of wire rope is  2~4  times  longer  than  that  of multi-layer rope and the cost is lower; The parallelogram luffing  mechanism with double swing  arm has a large support angle and 24%increase  in  support range,which  makes the operation  more stable; The hydraulic system adopts negative flow control technology which has a  fast response and  good handling  performance; The high-power dual hydraulic oil cooler is suitable for construction in high-temperature areas; The intelligent control system can achieve functions such as automatic adjustment and display of  mast perpendicularity,automatic slew and spin-off,ete; With a  large  diameter slewing  bearing,the  TDP series  hydraulic crawler chassis dedicated  for  rotary  drilling  rigs ensures  better  working   stability.

Parameters
