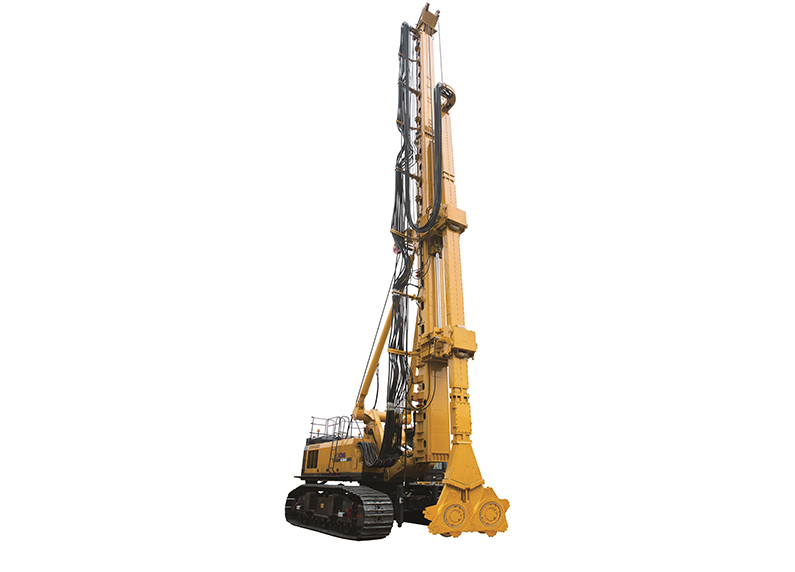

XCM40
XCM40 cutting and mixing drilling rig can be used in the construction of anti-seepage walls and retaining walls in deep foundation projects such as subway stations, building foundation pits, basements of high-rise buildings, underground parking lots, underground commercial streets, reservoir dams, ports, mines, environmental protection projects, etc. Cutter soil mixing (CSM) is a non-borrow soil mixing wall-forming method. The double-wheel cutter cuts into the soil, and when the cutter wheel crushes the soil, the pump conveys high-pressure cement slurry and air to the cutter through the guide rod. Then the cement slurry and air are fully stirred with loose soils to form anti-seepage walls, retaining walls or improve the formation, which is a new technology for efficient construction.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Trench width | mm | 700-1000 |
| Maximum trench depth | m | 40 |
| Maximum torque | kN·m | 2×80/100 |
| Rotary speed | r/min | 0-25 |
| Trench length | mm | 2800 |
| Maximum hoisting force | kN | 1000 |
| Engine | – | Cummins QSX15 |
| Engine power | kW | 447 |
| Emission standard | – | Euro III |
| Operating weight | t | 165 |
