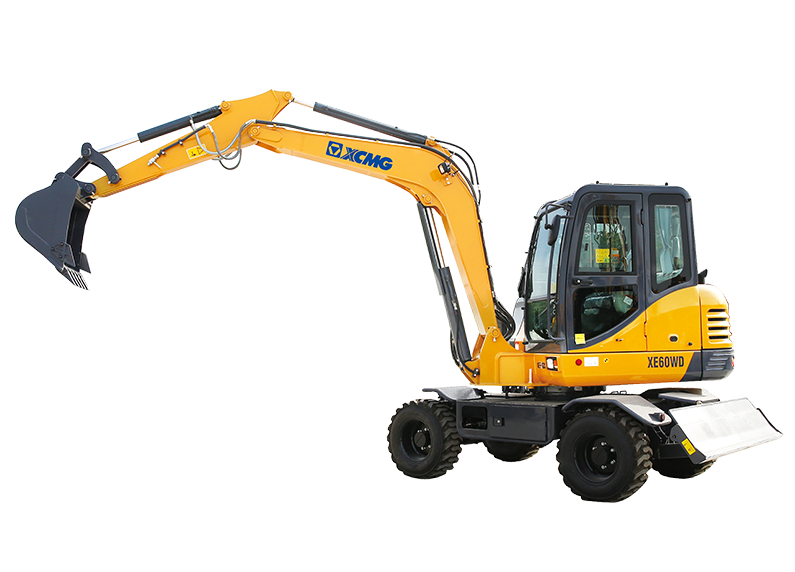

XE60WD
XE60WD Wheeled Excavator is ideal for a wide range of earthwork applications including municipal management, pipeline maintenance, and road construction. Powered by a high-efficiency direct injection engine, it delivers optimal fuel economy and environmental compliance without EGR or DPF. With a robust design and integral cylinder for increased displacement, it offers steady power output at low speeds and meets hydraulic system demands with strong torque. Featuring intuitive control with joystick gear shifting and smooth shuttle knobs, it ensures efficient operation. The advanced monitor allows real-time monitoring and data collection for maintenance, while easy access to components simplifies servicing. With centrally arranged filters, self-diagnostic functions, and enhanced energy efficiency, it's a standout choice for environmentally conscious and productivity-driven projects.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 5900 |
| Rated power | kW/rpm | 42.5 |
| Engine model | – | Yanmar 4TNV98 |
| Bucket capacity | m³ | 0.21 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 201/1800 |
| Displacement | L | 3.319 |
| Travel speed | km/h | 30/10 |
| Swing speed | r/min | 11.5 |
| Bucket digging force | kN | 42.8 |
| Arm digging force | kN | 25.8 |

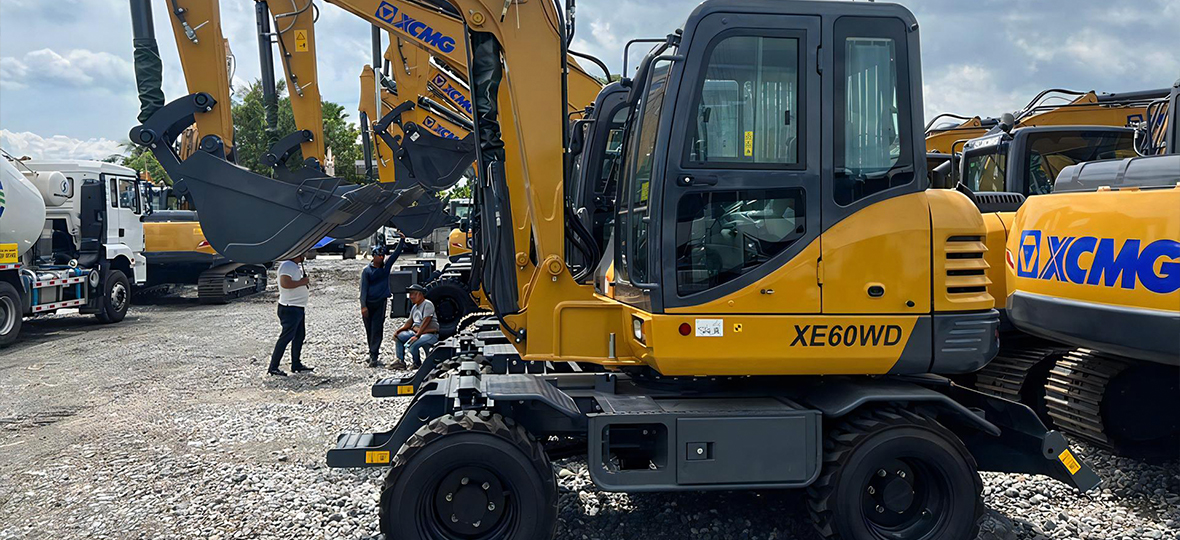

Gallery
