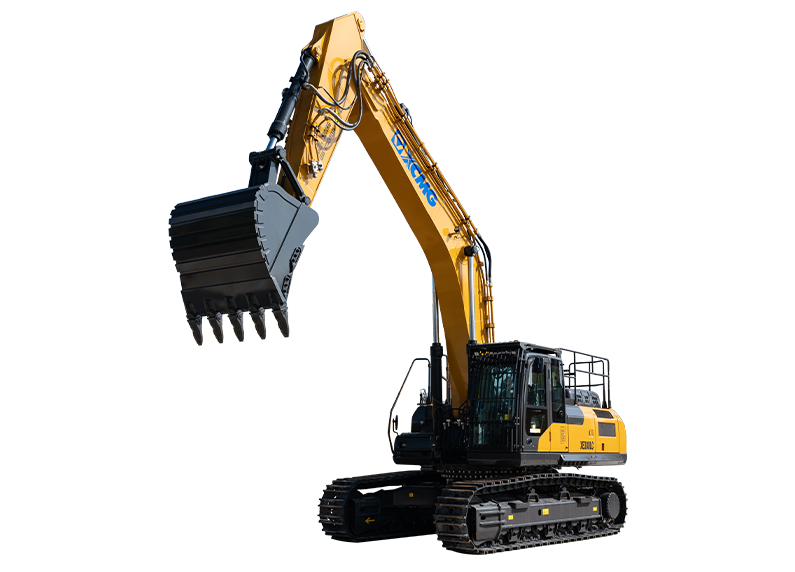

XE380LC
XE380LC adopts electronically controlled positive flow hydraulic system for rapid responses and sensitive operations. Its special engine adopts a customized torque curve to provide large torque output at low speed, and while providing rush-in power, it greatly reduces fuel consumption and meets the power output and fuel economy under heavy load mode. The high-pressure common rail system achieves the best fuel injection control and effectively improves the combustion efficiency.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Operating weight | Kg | 38200 |
| Rated power | kW/rpm | 214 |
| Engine model | – | Cummins QSL9 |
| Bucket capacity | m³ | 1.9 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 1344/1300 |
| Displacement | L | 8.9 |
| Travel speed | km/h | 5.6/3.3 |
| Swing speed | r/min | 9.6 |
| Bucket digging force | kN | 273 |
| Arm digging force | kN | 180 |

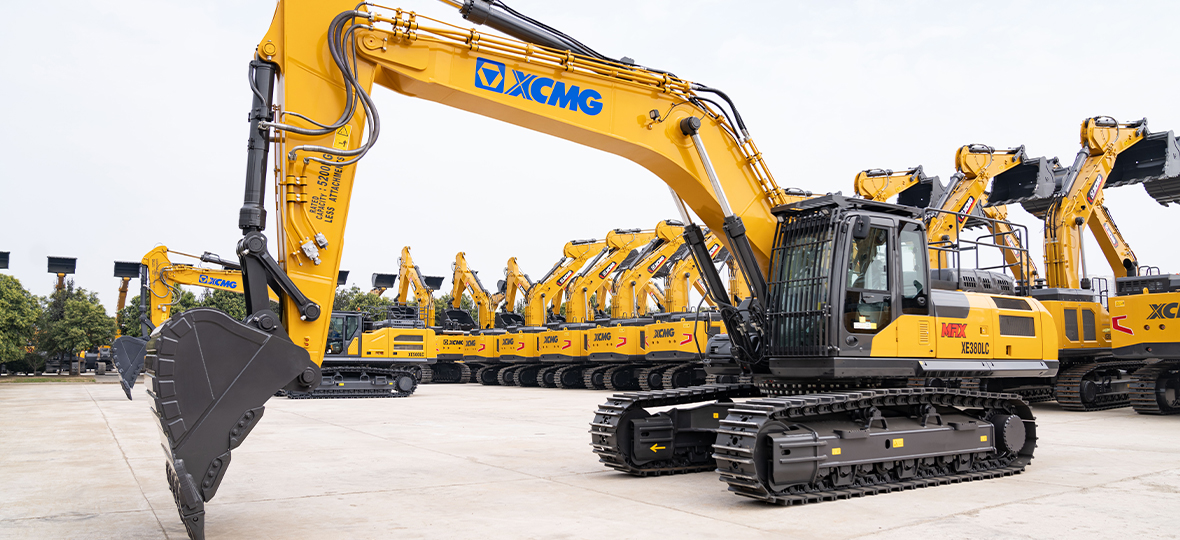

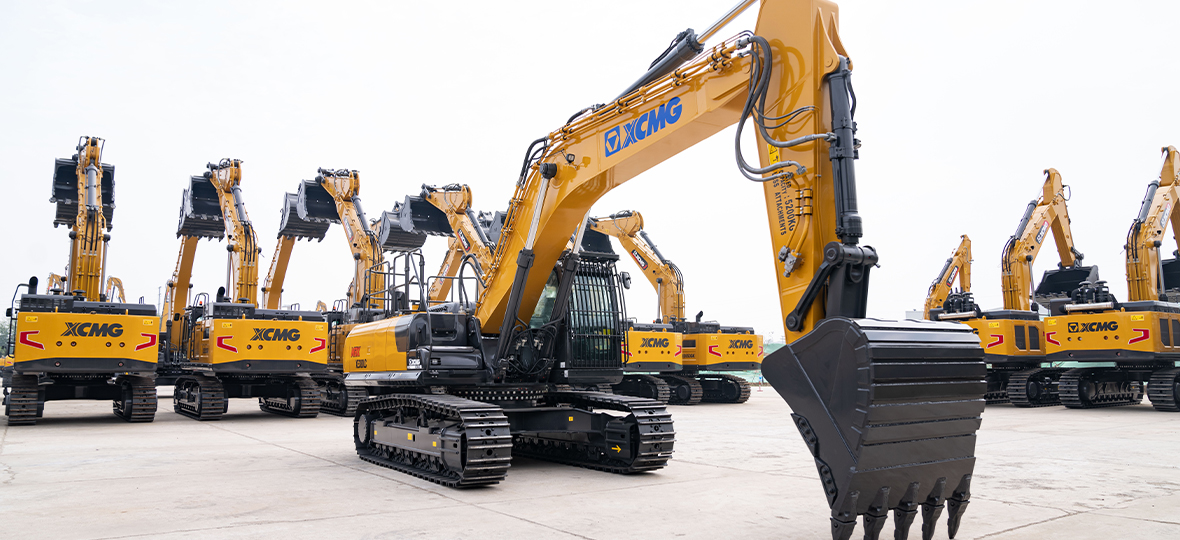

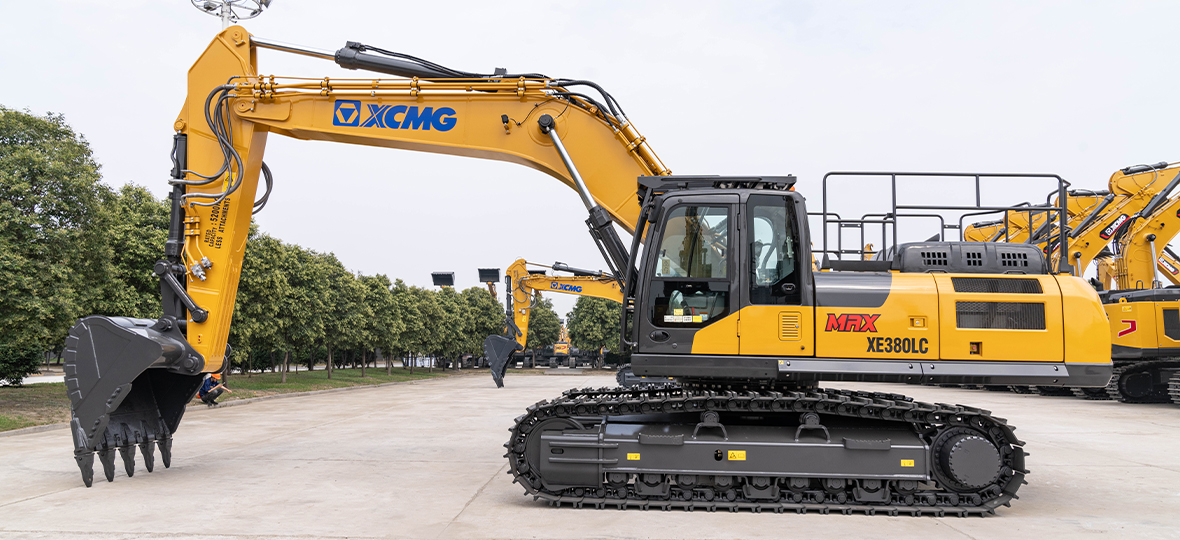

Gallery
