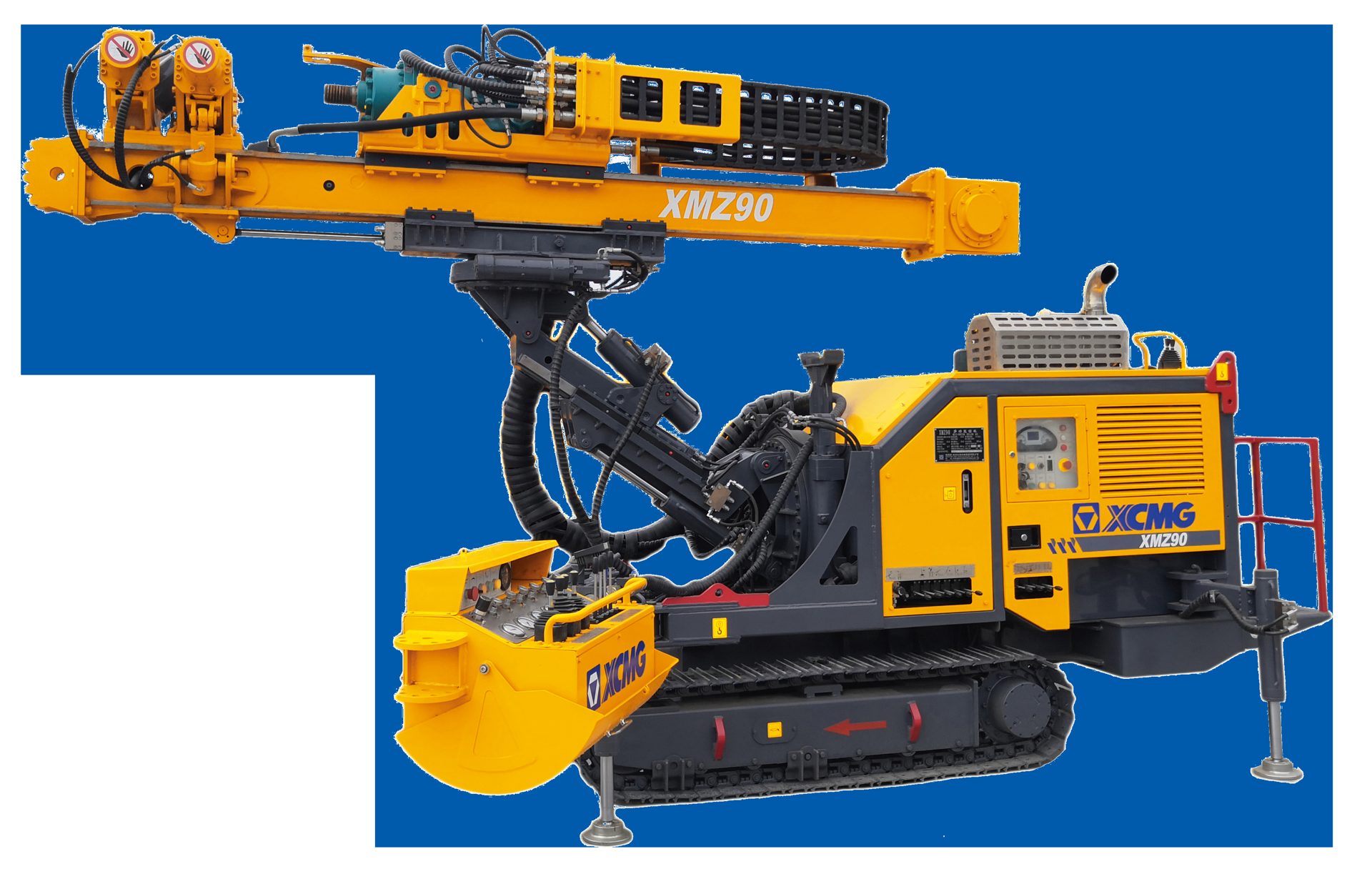

XMZ90
XMZ200 multifunctional drilling rig is mainly used in the construction such as pile anchor support for foundation and landslide, geological prospecting/pipe grouting of tunnel, tunnel rescue hole drilling, micro pile construction. The wireless remote control is used to control the drilling and walking, and the operator can freely choose the operating position to ensure the best view. Modular design of drill mast, clamp, rotary drive assembly, etc., and each module is rich in configuration to meet the special needs of different clients.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Rated power | kW | 93 |
| Max. feed/pull-out force | kN | 50 |
| Max. torque（multiple options） | N·m | 9600/4800 |
| Max. rotate speed （multiple options） | r/min | 48/95 |
| Engine model | – | QSF3.8 |
| Emission standard | – | EU III |
| Feed stroke | mm | 2000 |
| Clamping range （multiple options） | mm | Ф50-Ф225 |
| Weight | t | 8 |
| Transport dimensions | mm | 5210×1500×2650 |
