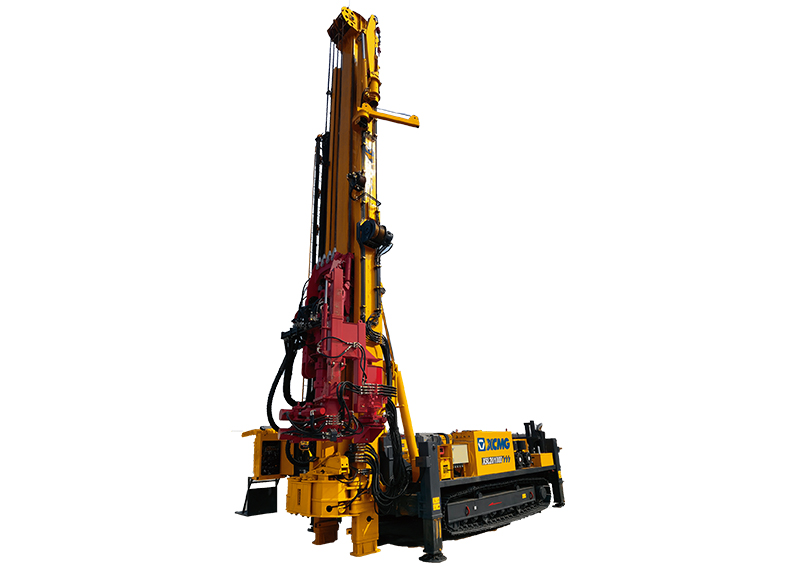

XSL1000
XSL1000E deep well drilling rig adopts full hydraulic control, top drive and crawler travel. With reasonable overall layout, it has high drilling efficiency, is suitable for air or mud drilling technology, and is widely used in water well, geothermal, coal bed gas, and emergency rescue drilling projects.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drilling depth | m | 2000 |
| Max. diameter of working floor | mm | Ф610 |
| Max. pulling force | kN | 1000 |
| Max. torque | N·m | 32000/20000 |
| Max. speed | rpm | 105/180 |
| Rated power | kW | 565 |
| Emission standard | – | EU II |
| Wight | t | 50 |
| Transport dimensions | mm | 14400×3000×3700 |
Gallery
