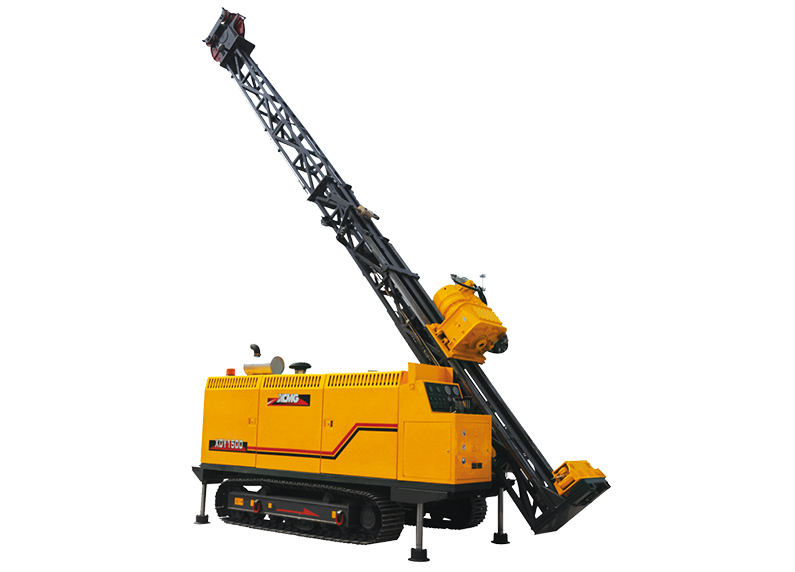

XDY1500
XDY1500 core drilling rig is specially designed for the general investigation and exploration of minerals which need coring operation, and it is applied to a great variety of high efficiency drilling process such as diamond wire-line coring. The equipment is powered by hydraulic system, and has a lot of merits like easy operation and convenient transportation. It can be widely used in the exploring of mining, nonferrous metals, chemical industry and coal field.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Drilling depth | m | 1500 (BQ) |
| Max. torque | N·m | 5200 |
| Max. rotation speed | rpm | 1250 |
| Max. pull of main winch | kN | 80 |
| Rated power | kW | 154 |
| Engine | – | QSB5.9 |
| Emission standard | – | CN III |
| Weight | t | 12.5 |
| Transport dimensions | mm | 6100×2410×2730 |

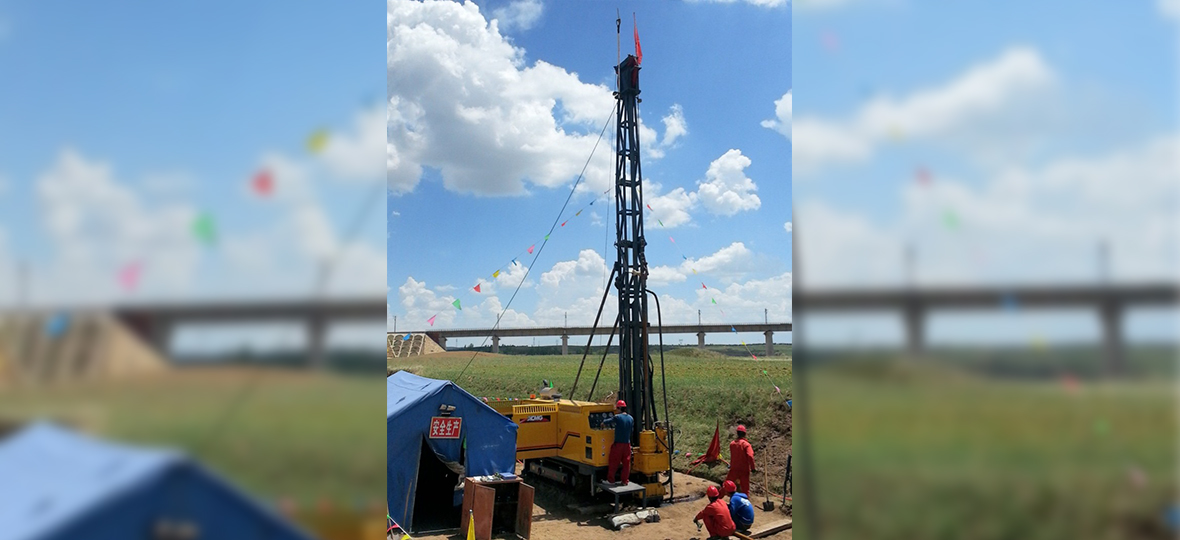

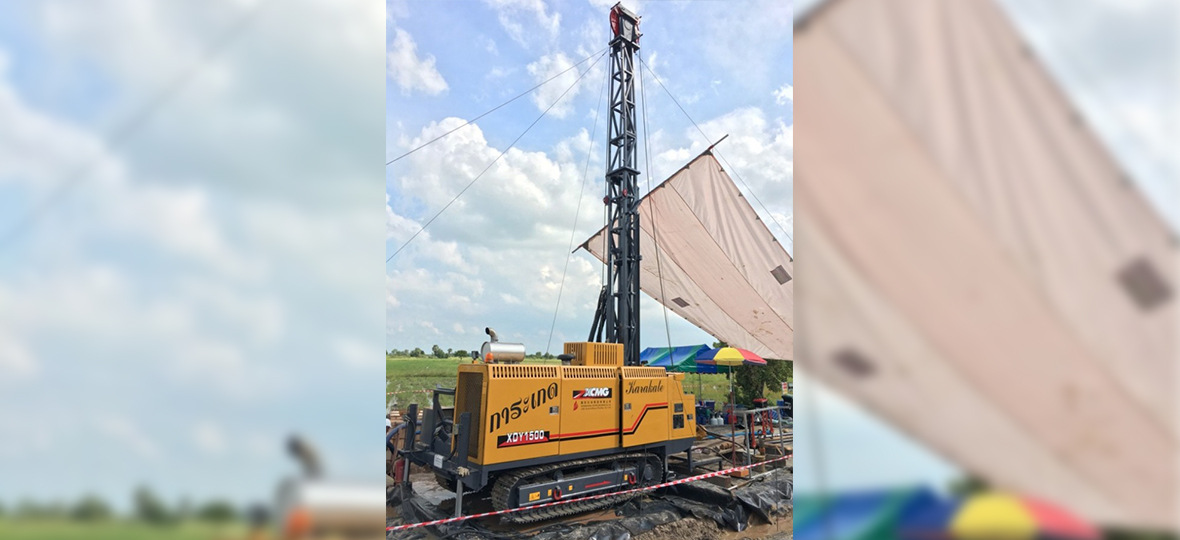

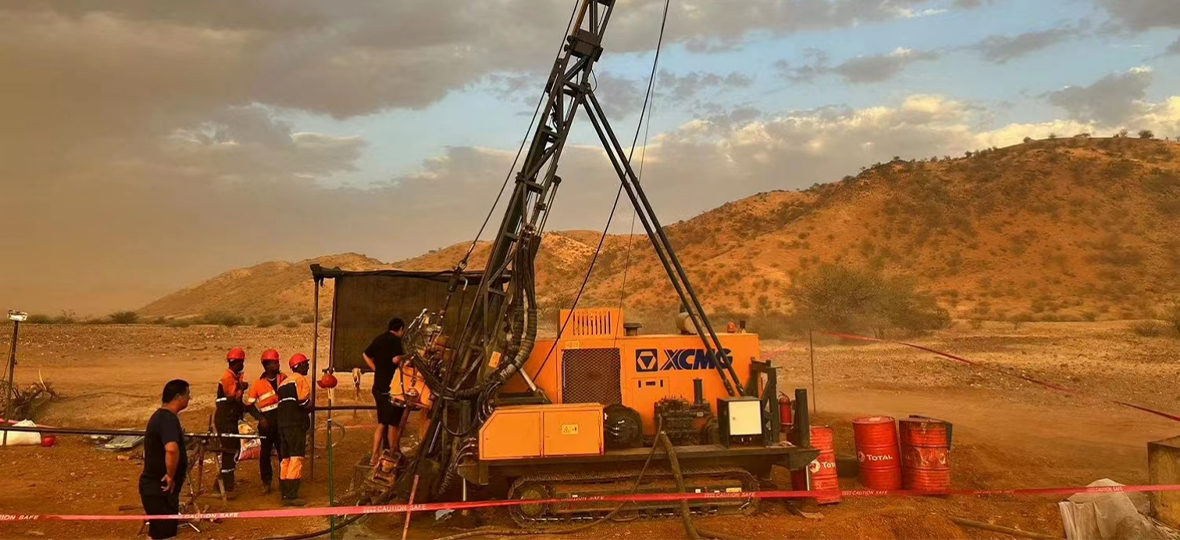

Gallery
