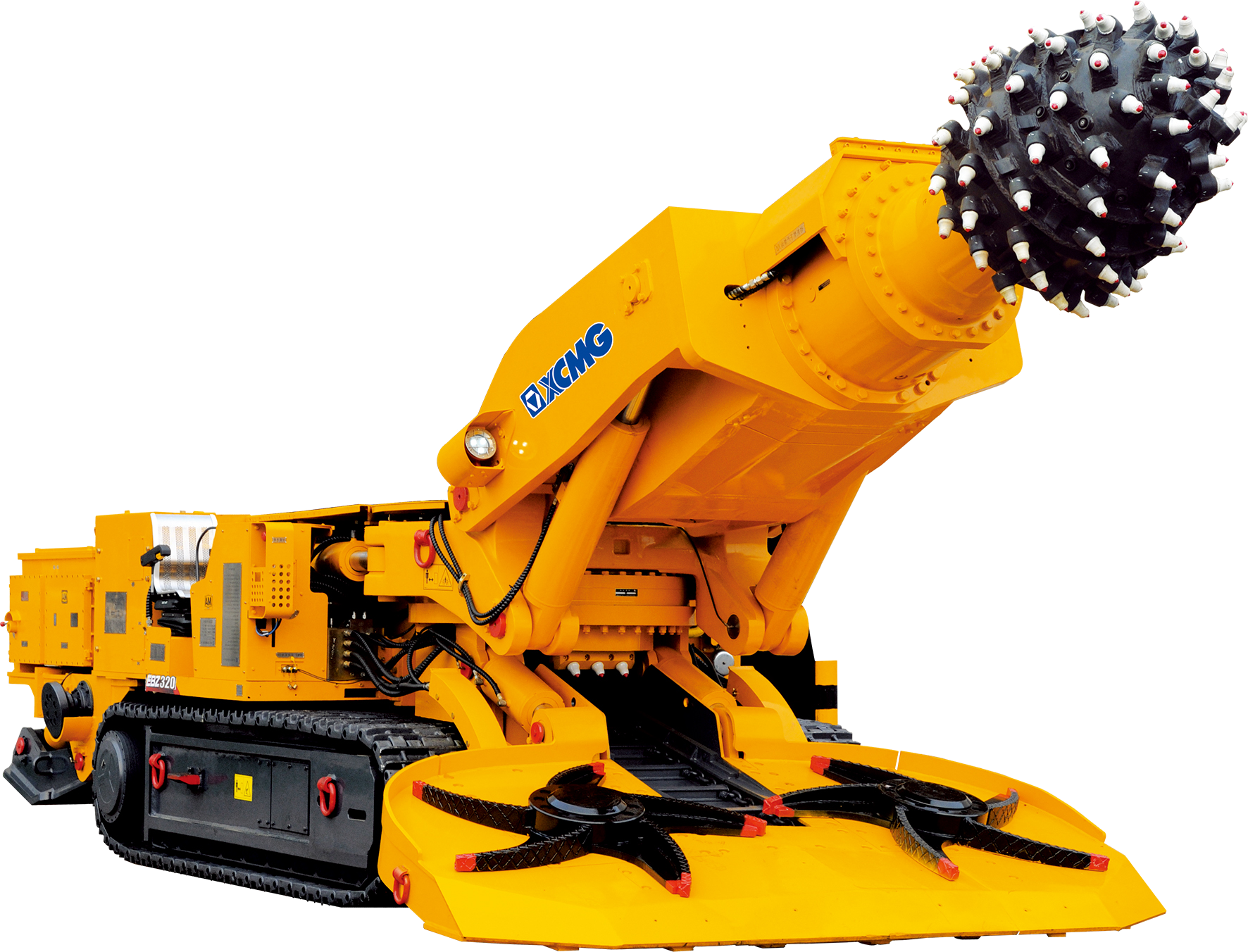

EBZ320L
EBZ320L roadheader is mainly used for coal roadway, semi-coal rock roadway, soft rock roadway and tunnel driving. With high configuration, it is safe and reliable. The second conveyor can be matched with dump truck, shuttle truck and belt conveyor to realize continuous cutting, loading and conveying.
Parameters
| Item | Unit | Parameter |
|---|---|---|
| Cutting height | mm | 5200 |
| Cutting width | mm | 6200 |
| Cutter motor power | kW | 320/240 |
| Shovel width | mm | 3800 |
| Traveling speed | m/min | 5.5/9 |
| Voltage | V | AC 1140 |
| Gradeability | ° | ±16 |
| Weight | t | 120 |
